Code Coupling¶

This section introduces the basic workflow for coupling solvers with MUI. It begins with a minimal two-solver example and then extends the discussion to more realistic multiphysics coupling patterns.

Minimal Integration to Couple Two Solvers¶

To couple non-MPI embedded codes, one of the simplest yet illustrative examples of MUI’s basic functionality is provided in:

MUI-demo/00-hello-world/hello.cpp

This example demonstrates how MUI transfers a double value between two instances of the same program running consecutively. Each instance acts as an independent application and exchanges data through a shared MUI interface.

A shortened version of the example is shown below.

#include "mui.h"

int main(int argc, char ** argv) {

  mui::uniface1d interface(argv[1]);

  mui::sampler_exact1d<double> spatial_sampler;
  mui::temporal_sampler_exact1d temporal_sampler;

  mui::point1d push_point;
  mui::point1d fetch_point;

  std::cout << "domain " << argv[1]
            << " pushed value " << argv[2] << "\n";

  push_point[0] = 0;
  interface.push("data", push_point, std::atof(argv[2]));
  interface.commit(0);

  int time = 0;
  fetch_point[0] = 0;

  double v = interface.fetch("data",
                             fetch_point,
                             time,
                             spatial_sampler,
                             temporal_sampler);

  std::cout << "domain " << argv[1]
            << " fetched value " << v << "\n";

  return 0;
}

Including the MUI Header¶

To use MUI in a C++ application, include the main header file:

#include "mui.h"

MUI is header-only for C++ applications, so no separate MUI library needs to be linked for the C++ core. The compiler must still be given the correct include path to the MUI headers.

Creating an Interface¶

The interface is created using:

mui::uniface1d interface(argv[1]);

For different spatial dimensions, use the corresponding interface type:

Dimension	Interface type
1-D	`mui::uniface1d`
2-D	`mui::uniface2d`
3-D	`mui::uniface3d`

The interface type also determines the expected point type and data dimensionality.

Interface Identification¶

Each MUI interface is identified by a Uniform Resource Identifier (URI) with the general form:

protocol://domainName/interfaceName

For MUI, the protocol is always mpi. The domainName is unique to each code instance, while the interfaceName should be shared by the applications that communicate through the same interface. A typical interface URI is:

mpi:/domain1/ifs

Defining Samplers¶

MUI uses spatial and temporal samplers to retrieve data from the interface.

mui::sampler_exact1d<double> spatial_sampler;
mui::temporal_sampler_exact1d temporal_sampler;

In this minimal example, exact samplers are used. These are suitable when the fetch point exactly matches the pushed point in space and time.

For non-matching grids, more advanced samplers such as radial basis function samplers may be required.

Defining Points¶

Data in MUI is associated with spatial points. For a one-dimensional interface:

mui::point1d push_point;
mui::point1d fetch_point;

The point type must be consistent with the interface dimension.

For example:

Interface	Point type
`mui::uniface1d`	`mui::point1d`
`mui::uniface2d`	`mui::point2d`
`mui::uniface3d`	`mui::point3d`

Pushing Data¶

MUI represents data as a cloud of Points, each with four attributes: label (name), position, time and value. To avoid fragmented communication, Points of the same label are contained in a continuous container that is received collectively. Sending the data to the interface happens in two processes. (i) Call push(label, position, value); (ii) After all the data associated with a time instance is pushed, a time stamp is given with the commit(time) to finalise transmission.

Data is sent to the interface using push

push_point[0] = 0;
interface.push("data", push_point, 0.618);

Each pushed value is associated with:

a label
a spatial point
a value
a time stamp assigned during commit

The label is used to identify the data field. In this example, the label is:

data

Committing Data¶

After all values for a given time instance have been pushed, the data frame is finalised using commit

interface.commit(0);

The argument is the time stamp. It is worth noting that the push and commit operations processes are non-blocking.

Fetching Data¶

To receive data, call the fetch function.

double v = interface.fetch("data",
                           fetch_point,
                           time,
                           spatial_sampler,
                           temporal_sampler);

Unlike push and commit, fetch is blocking. It waits until the corresponding Data Frame has been committed by the peer application.

Compiling the Example¶

MUI is a header-only library, that no pre-compilation is needed for C++ codes, and MUI is compiled as part of the host application. However, C, Fortran and Python wrappers require pre-compilation. MUI uses C++11 standard, and it has to be compiled with C++11 support and include the path to MUI header file. A simple compilation command is:

mpic++ -o ./hello ./hello.cpp -I/path/to/MUI -std=c++11

The key requirements are:

use an MPI compiler wrapper such as mpic++
include the path to the MUI headers
enable C++11 support

Running in MPI MPMD Mode¶

MUI uses MPI's MPMD mode to run independent applications simultaneously.

For the hello-world example, two instances can be launched as:

mpirun -np 1 ./hello mpi:/domain1/ifs 0.618 : \
       -np 1 ./hello mpi:/domain2/ifs 1.414

Here:

domain1 and domain2 identify the two application instances
ifs is the shared interface name
0.618 and 1.414 are values pushed by each instance

Multiphysics-Oriented Coupling¶

The MUI-demo/07-pseudo-diffusion example provides a more realistic multiphysics coupling pattern. It solves a synthetic unsteady heat diffusion problem across coupled domains.

The setup consists of:

one coarse domain
two fine domains
boundary data exchange between neighbouring domains
non-conformal grid transfer

This example demonstrates several MUI features that are important for real multiphysics applications:

centralised configuration
multiple interfaces
MPI communicator splitting
smart send regions
RBF-based spatial interpolation
memory management using forget

Example Structure¶

A shortened excerpt from the pseudo-diffusion example is shown below.

#include "mui.h"
#include "demo7_config.h"

int main(int argc, char ** argv) {

  MPI_Comm world = mui::mpi_split_by_app();

  std::string domain = "fineDomain";

  std::vector<std::string> interfaces;
  interfaces.emplace_back("interface2D01");
  interfaces.emplace_back("interface2D02");

  auto ifs = mui::create_uniface<mui::demo7_config>(domain,
                                                    interfaces);

  mui::geometry::box<mui::demo7_config> send_region({y0, z0pr},
                                                    {(y0 + ly0), (z0pr + lz0pr)});

  ifs[0]->announce_send_span(0, steps, send_region);

  mui::sampler_rbf<mui::demo7_config> spatial_sampler(rSampler,
                                                      point2dvec,
                                                      basisFunc,
                                                      conservative,
                                                      smoothFunc,
                                                      generateMatrix,
                                                      fileAddress,
                                                      cutoff,
                                                      cgSolveTol,
                                                      cgMaxIter,
                                                      pouSize,
                                                      preconditioner,
                                                      world);

  mui::temporal_sampler_exact<mui::demo7_config> temporal_sampler;

  ifs[0]->forget(t - forgetSteps);
}

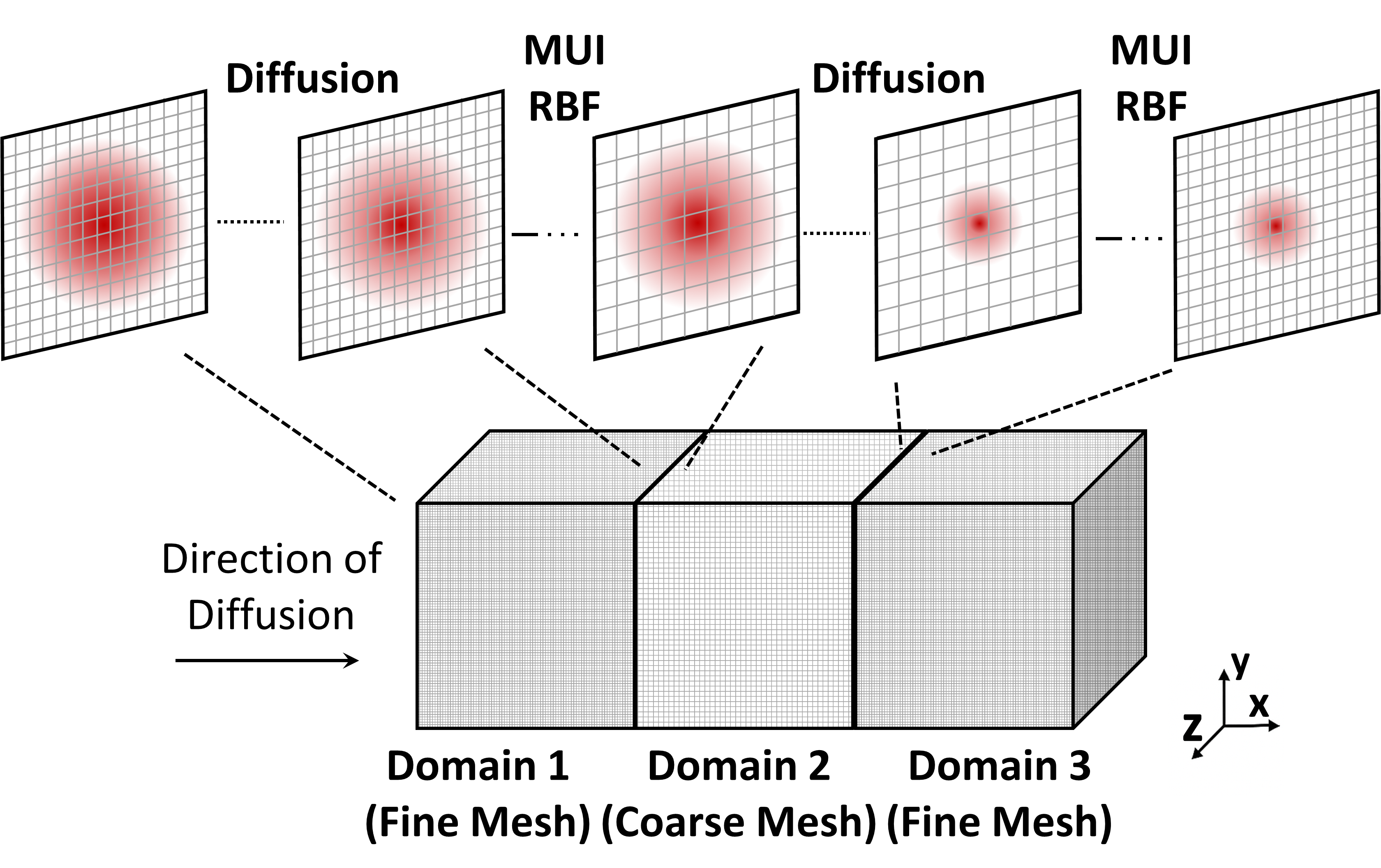

Schematic of the domains of the MUI-demo/07-pseudo-diffusion example.

Centralised Configuration¶

In MUI, interfaces can be defined in two ways: * Using specialised classes (uniface1d/2d/3d with matching Point types), or * Using a templated configuration approach via a project-specific config.h and included in solvers.

For larger coupled applications, it is recommended to use a central configuration structure rather than hard-coded interface specialisations. A typical configuration header is:

#ifndef DEMO7_CONFIG_H
#define DEMO7_CONFIG_H

namespace mui {

struct demo7_config {
  using EXCEPTION = exception_segv;

  static const bool DEBUG = false;
  static const int D = 2;
  static const bool FIXEDPOINTS = false;
  static const bool QUIET = false;

  using REAL = double;
  using INT = int;

  using point_type = point<REAL, D>;
  using time_type = REAL;
  using iterator_type = INT;

  using data_types = type_list<int, double, float>;
};

}

#endif

This approach ensures that all coupled solvers use consistent definitions for:

spatial dimension
floating-point type
integer type
point type
time type
supported data types

Creating Multiple Interfaces¶

A solver may need to communicate with several neighbouring solvers or domain boundaries. MUI supports this by creating multiple interfaces from a list of interface names.

std::string domain = "fineDomain";

std::vector<std::string> interfaces;
interfaces.emplace_back("interface2D01");
interfaces.emplace_back("interface2D02");

auto ifs = mui::create_uniface<mui::demo7_config>(domain,
                                                  interfaces);

The interfaces can then be accessed using standard indexing:

ifs[0]->push(...);
ifs[1]->fetch(...);

Splitting MPI Communicators¶

For MPI-embedded solvers, it is recommended to reserve MPI_COMM_WORLD for MUI-level communication and use separate local communicators for each solver.

MUI provides:

MPI_Comm world = mui::mpi_split_by_app();

This creates a communicator for each application in an MPMD run. Existing solver-level MPI operations should then use this local communicator rather than MPI_COMM_WORLD.

This pattern keeps:

global MUI communication visible across applications
internal solver communication isolated within each application

Alternatively, MPI_Comm_split with MPI_APPNUM can be used for a pure MPI approach. Both patterns preserve global visibility for MUI while isolating each solver's internal MPI. To maintain local MPI operations, it is required to replace the existing communicator in each MPI-embedded applications with the one created by MUI, ensuring intra-solver MPI remains unaffected.

Reduce Traffic with `Smart Send`¶

By default, MUI may use all-to-all communication. This is robust but can become expensive for large parallel simulations.

For scalable multi-rank runs, announce geometric send/receive regions (e.g., box, sphere, point, or line) through Smart Send at startup to allow MUI to prune unnecessary rank-to-rank messages. This typically reduces all-to-all patterns to near one-to-one at boundaries

Smart Send reduces unnecessary communication by allowing each application to announce the spatial region it will send or receive data from.

For example:

mui::geometry::box<mui::demo7_config> send_region({y0, z0pr},
                                                  {(y0 + ly0), (z0pr + lz0pr)});

ifs[0]->announce_send_span(0, steps, send_region);

Regions can be dynamically updated or removed by specifying a validity period by the first two arguments specify the validity period of the announced region. During this period, MUI can prune unnecessary rank-to-rank communication. After expiration, MUI reverts to all-to-all communication.

This is particularly useful for boundary-coupled simulations where only a small subset of ranks participate in data exchange.

RBF Sampler¶

The pseudo-diffusion example uses a radial basis function sampler for non-conformal data transfer.

mui::sampler_rbf<mui::demo7_config> spatial_sampler(...);

The RBF sampler is useful when:

source and target meshes do not match
interpolation is required between different grid resolutions
conservative or smoothed transfer is needed
data is exchanged across non-conformal interfaces

This makes it suitable for practical multiphysics simulations involving different solvers or different mesh resolutions.

Memory Management with `forget`¶

Long-running coupled simulations can accumulate many data frames. MUI provides the forget function to discard data that is no longer required.

ifs[0]->forget(t - forgetSteps);

This removes data older than the specified threshold and keeps memory usage manageable.

This is especially important for asynchronous simulations and long transient calculations.
